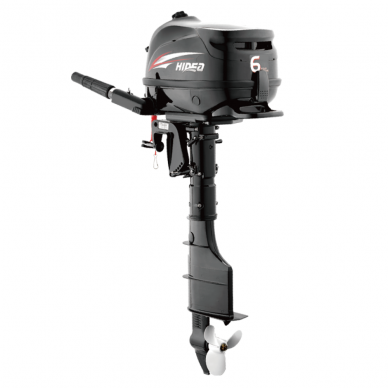

Hidea 4-stroke outboard HDF6L
Hidea 4-stroke outboard HDF6L
Code: F6HLLeasing calculators- gf
- sbl
- ml
- esto
-
Hidea 4-stroke outboard HDF6L
Specifications:
- Model - HDF6
- Max.Output (hp/kw) 6/4.4
- Full Throttle Operating Range (rpm) 4500-5500
- Stroke 4
- Cylinder 1
- Displacement (cc) 139
- Bore×Stroke (mm) 62×46
- Length×Width×Height (mm) 1170×750×333
- Weight (kg) 28
- Transom Height (mm) 508
- Gear Ratio 27:13 (2.08)
- Gear Shift Position F-N-R
- lgnition System TCI
- Cooling System Water-cooling
- Starting System Manual
- Control System Rear operation
- Capacity of Fuel Tank (L) 1.2L internal tank and 12L external tank available
Delivery set:
- Engine unit – 1 pcs.
- Thread plug, straight screw – 1 pcs.
- Cotter pin – 1 pcs.
- Impeller assy. – 1 pcs.
- Emergency starting handle – 1 pcs.
- Fuel case assy. – 1 pcs.
- Thread plug seal gasket – 2 pcs.
- Starter rope – 1 pcs.
- Fuel hose with connecter – 1 pcs.
- Toolkit – 1 pcs.
- Sleeve, spark plug – 1 pcs.
