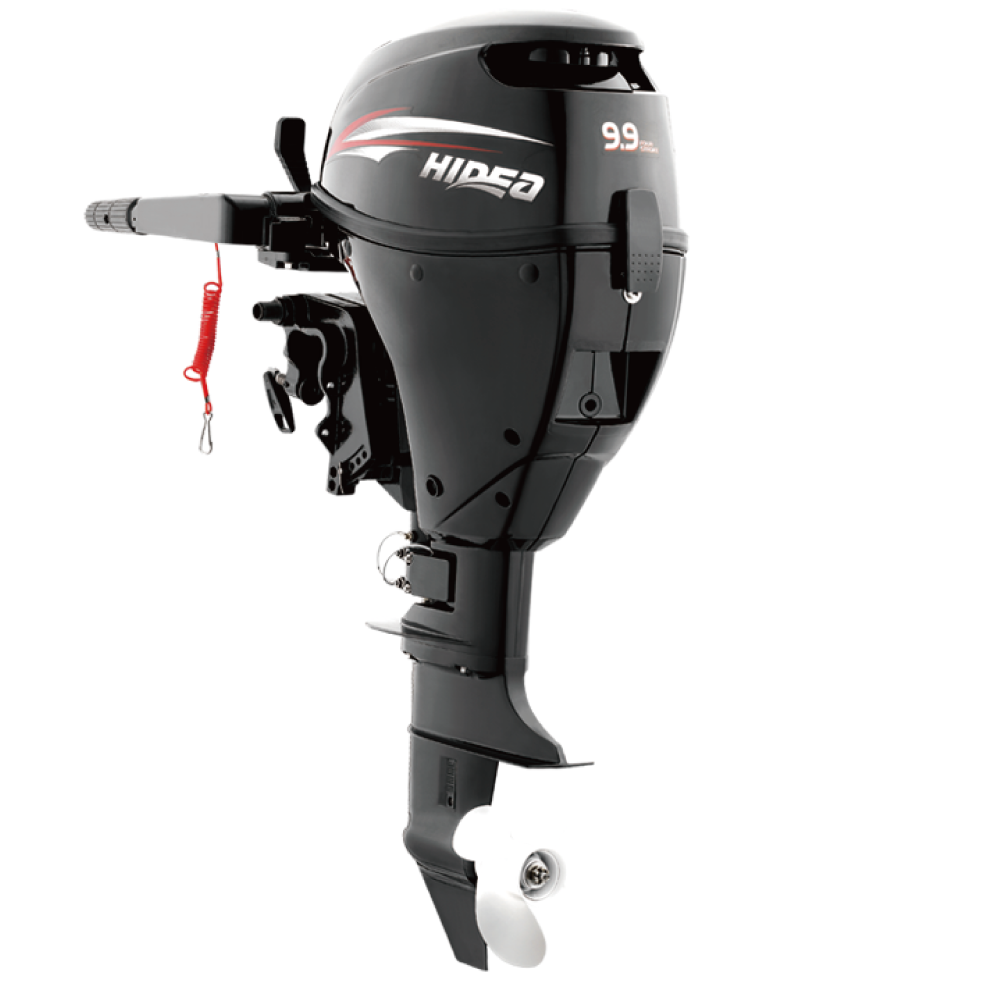

Hidea 4-stroke outboard HDF9.9L

  • Hidea 4-stroke outboard HDF9.9L

    Code: F9,9HL
    198900
    Want another price? Suggest yours!
    Add to cart
    You can get 198900 points when purchasing.
    Leasing calculators
    • gf
    • sbl
    • ml
    • esto
    Calculating...
    i
  • Hidea 4-stroke outboard HDF9.9L



    Specifications:

    • Specification Model HDF9.9
    • Max.Output (hp/kw) 9.9/7.2
    • Full Throttle Operating Range (rpm) 5000-5800
    • Stroke 4
    • Cylinder 2
    • Displacement (cc) 212
    • Bore×Stroke (mm) 56×43
    • Compression Ratio 9.4:1
    • Length×Width×Height (mm) 1038×360×1144
    • Weight (kg) 42
    • Transom Height (mm) 508
    • Gear Ratio 27:13 (2.08)
    • Gear Shift Position F-N-R
    • lgnition System CDI
    • Cooling System Water-cooling
    • Starting System Manual/Electric start
    • Control System Rear/Front operation
    • Capacity of Fuel Tank (L) 12

    Delivery set:

    • Engine unit – 1 pcs.
    • Thread plug, straight screw – 1 pcs.
    • Cotter pin – 1 pcs.
    • Impeller assy. – 1 pcs.
    • Emergency starting handle – 1 pcs.
    • Fuel case assy. – 1 pcs.
    • Thread plug seal gasket – 2 pcs.
    • Starter rope – 1 pcs.
    • Fuel hose with connecter – 1 pcs.
    • Toolkit – 1 pcs.
    • Sleeve, spark plug – 1 pcs.
